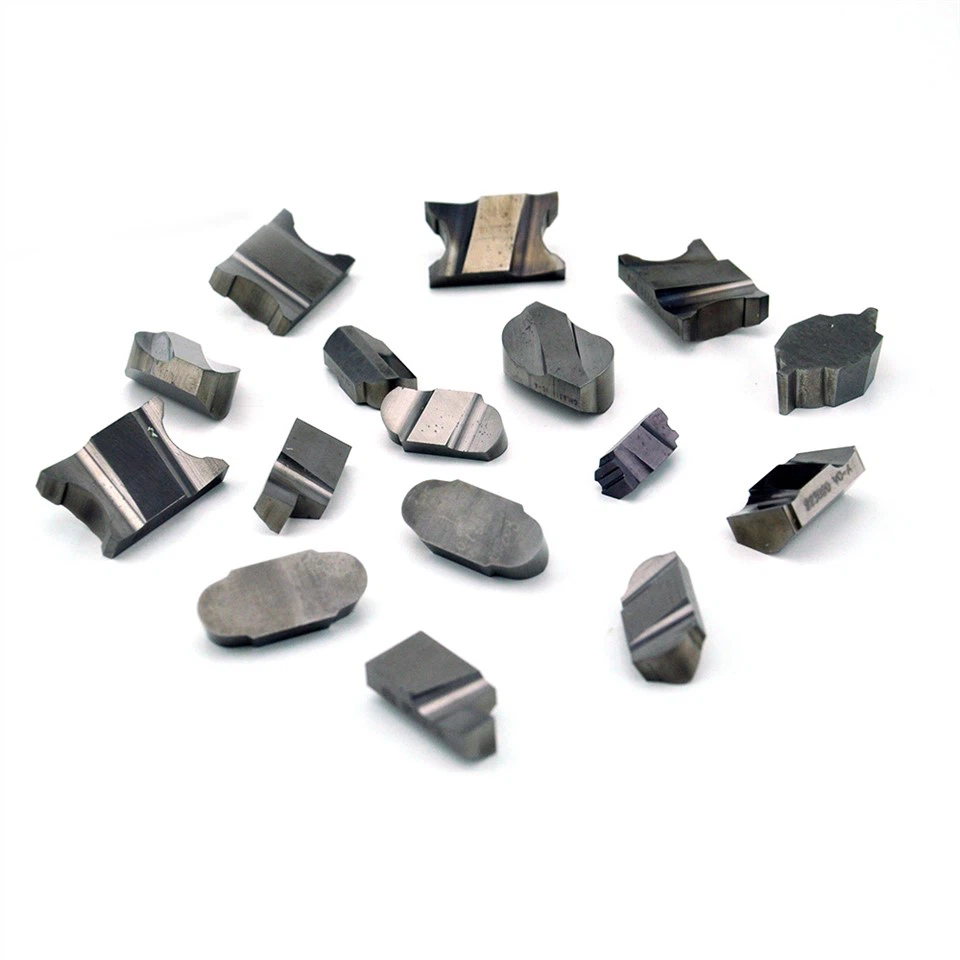

Inserts for Raceway of Bearing

Outer Ring Track Insert

Indexable track inserts for bearing's raceway improve turning efficiency from cutting tools grinding and adjustment by 20 percent and another 10 percent in grinding process by reducing grinding allowance.

Changing cutting edges can effectively get qualified components and reduce unqualified ones. Better CAM technology based indexable bearing profile insert avoids collapse with grinding wheels, reduces rates of spoiled components in the grinding process, and brings high economic benefits.

Two types of processing in relative angle above use same inserts. When inserts are facing downwards, tool holder is rotated 180 degrees along the axial direction, clamping is changed to the bottom with a screw. So for first time purchase or changing processing, please inform engineers detailed processing so that engineers can make judgment for profile inserts edges, inserts and holders. Currently, outer ring raceway inserts blanks are triangle, square, and V shaped etc. According to R curvature, groove depth, bearing ring structure, processing and chip

Re-grinding and cutting edge processing of cutting tools

One of the advantages of ceramic forming tool is repeated grinding. we provide customers with a full set of grinding technology, including regrinding equipment, regrinding fixture, regrinding wheel and so on. Customer encountered in tool grinding on any problem, we can provide technical support.

Grinding details

Cutting edge processing

Automatic cutting edge passivation machine

Mainly used for cutting edge processing, after the sharpening of the cutting edge is particularly sharp, must be on the edge of the blade to handle, to ensure the life of the tool, the automatic edge of the blade to ensure the consistency of the blade cutting edge.
